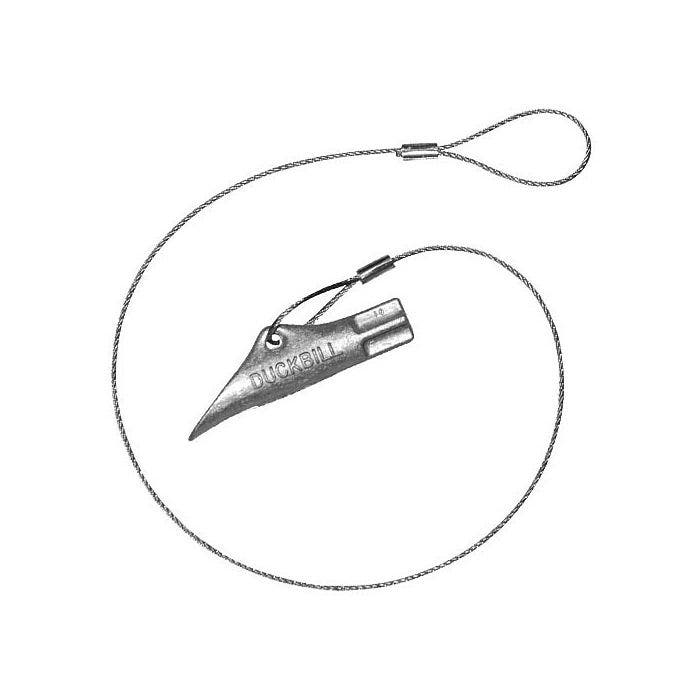

Duckbill Earth Anchor

The easiest, fastest, strongest, safest tree anchoring system available!

Leading landscape architects nationwide are specifying Duckbill anchors for more and more projects. They come complete with cable attached to each anchor.
Weight: 0 lbs
Item # Cable Size Rating Ship wt Stock Status 1 – 11 12 + Qty
138DB 5/16-inch x 60 inches 5000 lb 3 lb In Stock $46.49 $39.99
40DB 1/16- inch x 20 inches 300 lb .5 lb In Stock $4.15 $3.55
68DB 1/8-inch x 30 inches 1100 lb .5 lb Out of Stock
Please call for availability
$9.99 $8.49
88DB 1/4-inch x 42 inches 3000 lb 2 lb In Stock $23.99 $19.99

Specs

138DB 5/16in. x 60in. cable size, a 7 x 19 strand of galvanized cable attached (7 main cables with 19 other strands wrapped around original 7), 5000lbs. rating. **MUST BE DRIVEN WITH POWER DRIVE STEEL. POWER DRIVE STEEL FOR MODEL 138 ANCHORS IS 5' (1.6M)

Warranty

A.M. Leonard's down to earth guarantee. Product is covered under A.M. Leonard's full one year warranty against manufacturer defects for products when used under normal conditions.

Review Summary (Based on 4 Reviews)

Customer Reviews for Duckbill Earth Anchor

5 Stars

duckbill workability

wrote ():

Product worked well even in wet soil , held fast! Will use again when we have the opportunity.

5 Stars

Duck Bill Tree Achor

wrote ():

very clean and matches the clean installation of new expensive landscape. I liked the rating system. I knew that I was using [a] product that was properly rated in strenght.

5 Stars

Alternative Uses

wrote ():

We have been using duckbill anchors for years to hold fisheries structures (large trees and rootwads)in place. During low water times we place large structures in areas where no fish cover exists and use multiple size 88 duckbills to anchor in place. As the water rises these wood structures see lots of wave action until submerged. We have had a very small percentage fail. These work easiest in clear substrates , but we have had success in cobble filled lake banks as well, just get the youngest crewmembers to work the sledge hammer!

5 Stars

Anchor for scour chains

wrote ():

I bought a dozen 4.6 oz duckbills as anchors for scour chains to measure scour/deposition in river beds.(Rosgen 2004). This is for a river restoration project. I removed the attached wires and attached them to temperature sensors as anchor wires. Reasonable price, fast and friendly service.

    FAQ

    QUESTION: What size tree will this anchor support?
    ANSWER: This Anchor is typically used on trees up to a 6" diameter, with 3 supporting the tree.

The easiest, fastest, strongest, safest tree anchoring system available!

Leading landscape architects nationwide are specifying Duckbill anchors for more and more projects. They come complete with cable attached to each anchor.
